Enameled Round Aluminum Wire

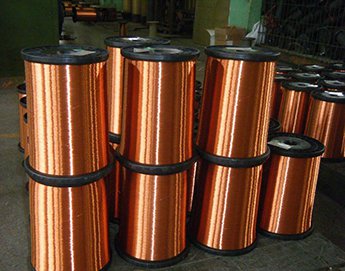

Enameled round aluminum wire

Class 130/155/180/200/220 enamelled round aluminum wire

Introduction :

Enameled round aluminum wire is made of oxygen free rod or electrical aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices.


Feature :
High thermal class
High chemical stability
Good mechanical properties
High breakdown voltage, good formability

Aluminum wire :

     Enameled round aluminum wire , is made by soft and soft wire in accordance with the provisions of the 5584.2-85 GB, 20℃when the resistivity is not greater than 0.01724Ω.mm2/m according to different mechanical strength requirements, the provisions of the semi hard conductor and aluminum conductor according to different mechanical strength requirements, semi hard conductor of non proportional C1Rp 0.2 (>100--180) N/mm2, C2Rp0.2 (>180--220) N/mm2, C3Rp0.2 (>220--260) N/mm2. 20 degrees of resistivity is less than 0.02801 Ω.mm2/m according to different electrical insulation requirements, selection of thin film 0.06--0.11mm or the thickness of the film 0.12--0.16mm. The heat adhesion paint package wire self-adhesive layer thickness is generally 0.03--0.06mm. Our company the loss tester for TD11 painting process for screening, the film fixed more hasten is perfect.
* If have special demand on paint thickness, please contact us as well.


Material :
Drawing or extruding bare aluminum wire confirm to National Standard, smooth surface, no defects ;Good performance,Insulation varnish.


Type	Polyesterimide	Polyimide and polyimide  mixed	Polyvinyl acetal	Thermal bonding acetal
Temperature-resist grade	180	200	120(155)	120
Property	High heat resistance,  good chemical  resistance, hydrolysis  resistance	Excellent heat resistance,  strong resistance to  chemical solvents, good  scratch resistance	Excellent resistance to  transformer oil, good  resistance to scratch,  excellent flexibility and  adhesion, and good  water resistance.	In addition to all the  performance with acetal, also can  obtain good  adhesion strength by  the heating  mode
Standard	GB/T7095.4-2008,  IEC60317-28	GB/T7095.6-2008,  IEC60317-29	GB/T7095.2-2008,  IEC60317-18
Testing  Standard	GB/T4074, IEC60851-1-6


Application Of Enameled round Aluminum Wire ：
Transformers, generators, refrigeration systems, class C generators, UPS power supplys, electronic transformers.

---
